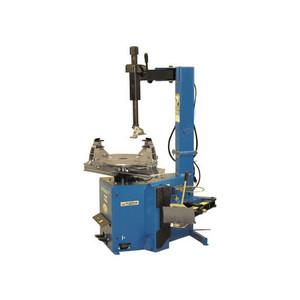

Hofmann 1520M Motorcycle Tire Changer

Hofmann1520M – Motorcycle/ATV Tire Changer with Car/Motorcycle clamping jaws. Manufactured by Hofmann, these top-of-the line pneumatic tire changers are designed to change all types of motorcycle and ATV tires, including difficult Harley-Davidson® belt drive rims. Dual clamping cylinders assure proper clamping pressure to all four jaws. The clamping jaws are designed to eliminate the additional labor involved in removing the brake disc rotor, sprocket, or drive pulley when servicing a wheel. The jaws are provided with plastic protection over a metal jaw to protect the rims from damage. Plastic protection is also provided in the bead tool head. Using a 115V outlet and standard shop air, tire changing is a snap for 10" to 21" diameter wheels.   Check out the 1520EMX Tire Changer for a solution to effectively change low profile, stiff sidewall performance tires.

We offer Hofmann's full line of accessories and adapters for Tire Changers and Wheel Balancers.  Give us a call at 888-560-9510.

PRODUCT SPECS

• Shipping weight: 480lbs
• Bead breaker range: 0" to 12.0"
• Bead breaker power: 6,000 lbs
• Maximum rim width: 13.0"
• Rim clamping diameter: 10.0" to 21.0"
• Inner: 12.0" to 20.0"
• Outer: 10.0" to 18.0"
• With optional adapters For ATV's: 7.0" to 14.0"
• With optional adapters For Motorcycle: 12.0" to 21.0"
• Automotive extensions: to 22.0" outside
• Maximum tire diameter: 40.0''
• Electrical requirements: 115V,1Ph, 50/60 hz
• Drive motor: Electric: 1 hp
• Air supply operating range: 110 to 170 psi
• Torque (Electric motor): 737 ft/lbs
