I-12 Certified

Introducing Forward Lift's I-12 12000lb. capacity ALI Certified Two Post Lift.  The I-12 offers Single Point Lock Release, Free Truck Adapters and New Adjustable Width and Height.

Ask about our Free Freight Promo!
Local Sales Tax May Apply.

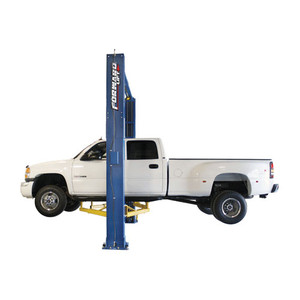

The Forward Lift I-12 is a ALI Certified 12000 lbs. Capacity Two Post Overhead Truck Lift.  The I-12 designed with symmetric arms making it the solution for servicing and maintaining Heavy Duty Trucks and Fleet Vehicles.

The I-12 has two piece column construction with an overhead which provides a clear floor leaving no structure on the floor between the posts making for a friendly workspace. The Overhead structure has a padded automatic shutoff for taller vehicles.

The I-12 comes with 4 – 4 1/2” and 4 – 8 1/2" pin style truck adapters.  The Adjustable Truck Adapters coupled with a low pad height of 5” allows for a tremendous range in lifting capabilities.

Sinlge point lock release system has been added to Forward two post lifts to improve n bay efficiency.  Direct Pull cylinder design coupled with single point lock release make for a safe and efficient lifting and locking operation.    The I-12 is supported by Forward List's 3 year factory parts warranty.    Note: The Forward Lift I-12 requires a minimum depth of 6” with a minimum 3000 psi compressive strength.

Forward Lift – Engineered to Perform, Built to Last!

FEATURES

• Features symmetrical column design
• Direct-Pull Lifting - high efficiency, low maintenance technology
• Closed loop hydraulic system - preventing hydraulic contamination
• Powder coat, oven baked finish - more durable than conventional coatings
• Third party tested by ETL and certifed by ALI
• Padded shut-off bar
• High tech gear style arm restraints
• Includes truck adapters
• Single point release lock in each column, resets on upstroke
• Optional narrow bay model
• Optional high rise and extended height available

PRODUCT SPECS

• Rise: 74"
• Rise with Tall Adapter: 82 1/2"
• Overall Height : 13' 9"
• Overall Width: 12' 6"
• Drive Through Clearance: 8' 1"
• Floor to Overhead Shutoff: 13' 3"
• Min. Arm Length Front & Rear: 38 1/2"
• Max Arm Length Front & Rear: 57 1/2"
• Min. Pad Height: 6"
• Distance between Columns: 10' 3"
• Capacity : 12,000lbs.
• Power Unit: 2HP
• Electrical Requirements: 208 - 230, 1 Phase, 20A
• Speed of Rise: 55 Seconds
• Hydraulic Oil - AW32 or AW46
