CR-14 Extended

Forward Lift CR 14 Extended four post lift.  Accomodates up to 204" maximum wheelbase.

Ask about our Free Freight Promotion!
Local Sales Tax may apply.

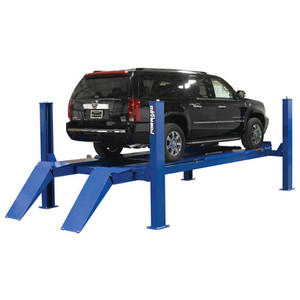

Picture shows aligment kit and air jacks not included in price.

Forward Lift’s CR-14 Extended series of commercial automotive lifts has obtained ALI certification, the Gold Standard of the automotive lift industry. With 14,000lbs. of capacity and the capability to handle up to 204" of Wheelbase this car lift is perfect for any car dealership or independent repair shop servicing and maintaining a full range of vehicles including heavy duty pickup trucks.

The CR-14 Extended series utilizes advanced cable design and air operated single point lock release locking mechanism. The locking mechanism incorporates internal lock ladders in each column that allow for easy leveling of car lift. The CR-14 Extended series locking mechanism also has a secondary locking mechanism that automatically engages in the event of a slack cable.

For wheels free service the Direct Lift RJ-70 roller jack can be added to the CR-14 Extended series four post lift. The addition of the Rolling Jack allows additional revenue generating service such as brakes and other wheel service.

All CR-14 series four post lifts include anchor bolts, installation manual and is powder coated for a durable finish. The Forward Lift CR-14 series is backed by a 3 Year Factory Parts Warranty. Forward Lift is a Rotary Lift Consolidated company and is a subsidiary of the Fortune 500 Dover Corporation (NYSE:DOV) which is the Largest motorcycle/auto/truck lift manufacturer in the world. Customer service and support after the sale is the best in the business.

FEATURES

• 14,000 LB Capacity
• Advanced Cable Drive Design
• Heavy Duty Hydraulic Cylinder
• Single Point Latch Release
• Air Operated Locks
• Multi Position Latch Points in each Leg
• Adjustable Lock Ladder in Each Post
• Anchor bolts included

AVAILABLE OPTIONS

• Alignment Kit Available
• Air Line Kit Air Jack Available
• Turning Radius
• Gauges
• Drive Thru Ramps

PRODUCT SPECS

• Length between Columns: 189 1/4"
• Overall Height : 7' 4"
• Runway Width : 20"
• Overall Length: 24' 6"
• Overall Width: 11' 5"
• Runway Height: 7"
• Width between Runways: 43"
• Rise Time : 65 Seconds
• Voltage: 208 - 230 / Single Phase
• Minimu Bay Size: 15' X 29'
• Width Inside Columns: 114 1/4"
• Lifting Height: 73 3/4"
• Capacity: 14,000 lbs.
• Maximum Wheelbase: 204"
• Hydraulic Oil - AW32 or AW46
