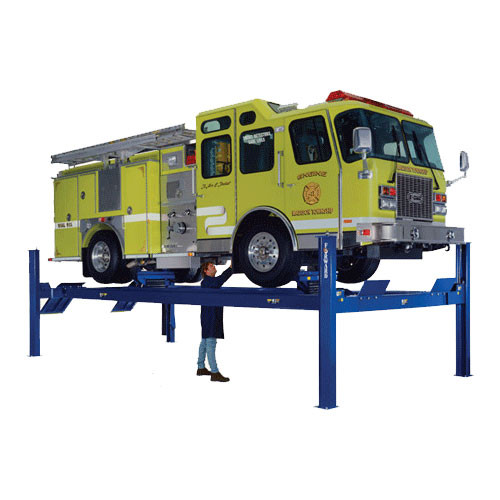

CR-30 Heavy Duty Four Post Lift

Forward Lift's CR30 is a 30,000lb Heavy Duty Four Post Lift is the ultimate in quality and support after the sale.

Ask about our Free Freight Promotion!
Local Sales Tax may apply.

Forward Lift CR30 is a Heavy Duty Four Post Lift designed for general service on trucks and service vehicles up to 30,000lbs.  The CR30 carries the Gold Label of the industry certifying the lift has been rigorously tested for safety and durability in addition to a 1.5 times rated capacity load test.


The CR30 is a cable style Four Post Lift which allows the integration of an adjustable lock ladder providing multiple level lock positions.  In addition, the CR30 has a single point lock release lever at the control post for ease of use and quick operation.  Forward Lifts has designed a secondary or slack cable safety into the locking mechanism.  The slack cable safety automatically engages when a slack cable situation is encountered during operation.

The standard wheelbase on the CR30 is 271" with the option to increase the wheelbase to 307".  The CR30 comes standard with self chocking, diamond plate approach ramps, diamond plate runways and an integrated internal airline kit.

The Forward Lift CR30 is the perfect addition to the heavy duty shop providing years of safe and revenue producing operation.

The CR30 includes anchor bolts, installation manual and is powder coated for a durable finish. The Forward Lift CR30 is backed by a 3 Year Factory Parts Warranty. Forward Lift is a Rotary Lift Consolidated company and is a subsidiary of the Fortune 500 Dover Corporation (NYSE:DOV) which is the Largest motorcycle/auto/truck lift manufacturer in the world. Customer service and support after the sale is the best in the business.

OPTIONS

• Rolling Bridge Jack (15,000lb)
• 30 Gallon Oil Drain
• Drive Thru Ramps

PRODUCT SPECS

• Capacity: 28000lbs
• Maximum Wheelbase: 271"
• Lifting Height: 68"
• Overall Length: 28' 8"
• Overall Width: 12' 4"
• Overall Height: 7' 1"
• Width Inside Columns: 132"
• Length Between Columns: 285"
• Runway Height: 8 3/8"
• Runway Width: 24"
• Width Between Runways: 41" - 48"
• Rise Time: 105 Seconds
• Motor: 208-230 / 1PH / 4HP
• Minimum Bay Size: 16' X 33'
• Hydraulic Oil - AW32 or AW46
