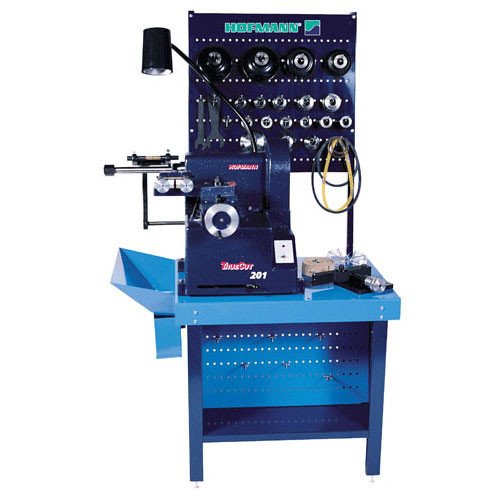

Hofmann 201

The Hofmann 201 Brake Lathe is a commercial grade yet very affordable lathe for the smaller shop that wants to take control of their brake jobs and present one of the finest cuts available.  Positive rake carbide setup with dove tail travel ways assure a finish cut in just one pass.

Combination brake lathe designed as an affordable alternative for today's automotive repair shops.
The Hofmann 201 brake lathe will provide a quality finish with the performance, accuracy and versatility that is found in all Hofmann equipment.

• Feed carriage speed is factory set for a like new "micro finish".Simple "one cut" finish
• Fast changeover of toolingChangeover from disc cutter to drum cutter is achieved quickly by swiveling the feed carriage assembly.
• Heavy duty construction throughout, from the oversized tapered roller bearings supporting the lathe arbor to the 350 lbs ductile iron chassis, the 201 brake lathe is built for years of machining.
• Innovative tooling design
  The 201 standard tooling package is easily adapted to all existing and future machining applications.

Complete tooling package is included
Bearing adapters, cones, rotor and drum silencers, drum and rotor cutter tools, work lamp, drum and rotor hubless cups, wrenches, etc.

OPTIONS

• Backboard for accessories - B203
• Work bench for brake lathe - B206
• Heavy duty adapter set for 3/4 & 1 ton - TK4-1
• Carbide bits (10 pkg.) - W139
• Rotor stabilizer - CL503
• Replacement rotor stabilizer (2 pkg.) - 1103
• Universal hubless adapter set - 108950
• Universal hubless/composite adapter set - 108963
• Maximum Arbor Weight - 150 lbs
• 11/16" Arbor set - W177
• 1 7/8" Arbor set - TK6

PRODUCT SPECS

• Drum/rotor carriage feed/revolution : 0.0025"
• Drum diameter range : to 14.0"
• Drum facing travel : to 4.0"
• Rotor/flywheel diameter range : 5.0-18.0"
• Rotor thickness range : to 3.0"
• Rotor/flywheel facing travel : to 4.0"
• Arbor Speed : 185-190 RPM
• Arbor diameter : 1.0"
• Maximum Arbor Weight : 150 lbs
• Shipping weight : 350 lbs
• Power requirements : 115 v, 1 ph, 10 amps, 60 htz
