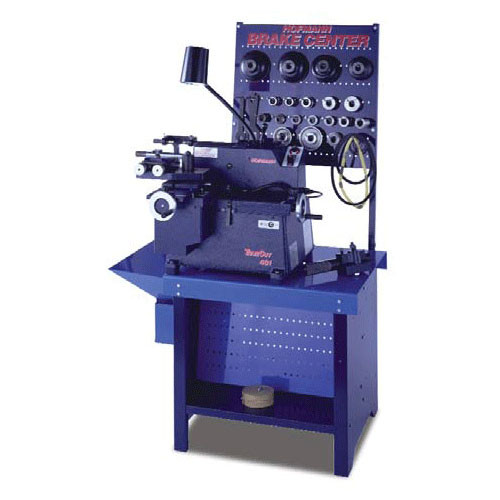

Hofmann 401

The Hofmann 401 Brake Lathe is a commercial grade lathe geared towards the higher volume shop that wants to take control of their brake jobs and present one of the finest cuts available.  Positive rake carbide setup with dove tail travel ways assure a finish cut in just one pass.

All the features for fast, accurate & precision resurfacing of automobile and truck rotors, drums and flywheels

• "One Cut" Finish or Infinitely Adjustable Machining Speed-your choice.
  Feed carriage speed may be set for one cut finish for very fast machining and high production. If specifications call for a two-stage machining, rough cut/finish cut, the operator simply rotates a dial
• Four Arbor SpeedsA Hofmann exclusive! Operator may select any of four arbor speeds for "Like New" Micro Finish results while turning the smallest sub-compact rotor or a finish and more carbide cutter life than fixed speed lathes.
• Precision Carriage Speed ControlAnother Hofmann exclusive! Once carriage speed is set the motor sends a speed sensitive signal to the electronic speed control module. The control module ensures the exact carriage feed speed is maintained throughout the entire resurfacing, no matter the condition of the friction surface. This is especially useful, ensuring a uniform surface, while turning rotors, drums and flywheels that are scored or contain hard spots.
• Heavy, thick ductile iron chassis provides a rugged, reliable base for the 401 TrueCut
• Quick changeover from disc to drum tools in only seconds.
• Innovative design and tooling allows the 401 TrueCut to be adapted easily to all existing and future machining applications.
• Drive shaft and arbor are supported by extra large tapered roller bearings. Bearings and complete drive train operate in an oil bath-no bushings or old-fashioned sleeves to wear out.
• Automatic tool carriage shut off.
• Simple arbor drive - only two gears.
• High torque brushless permanent magnet split capacitor gear motors. Two separate motors-one to drive each tool carriage.
• Optional heavy-duty B206 bench is made with 1/8" thick steel and has a built-in chip catcher. Provides over 1 foot of working space and gives all kinds of extra room for tooling storage.
• Optional B203 backboard provides additional tool storage.
• Adjustable deluxe work light.
• Top storage space for tools

Long life warranty provides full coverage.

Optional Accessories

• Backboard for accessories B203
• Workbench for brake lathe B206
• Heavy duty adapter set for 3/4 & 1 ton TK4-1
• Carbide bits (10 pkg.) W139
• Rotor stabilizer CL503
• Replacement rotor stabilizer (2 pkg.) 1103
• Universal hubless adapter set 108950
• Universal hubless/composite adapter set 108963
• 11/16" Arbor set W177
• 1.7/8" Arbor set TK6

PRODUCT SPECS

• Rotor/flywheel feed rate per revolution: 0.001-0.010"
• Rotor / flywheel diameter range: 5.0-30"
• Maximum rotor/flywheel thickness range: 3"
• Rotor/flywheel facing travel : 5"
• Drum feed rate per revolution : 0.0012-0.012"
• Drum diameter range : 5-30"
• Drum facing width : 9"
• Arbor speeds, adjustable : 85-110-140-185 rpm
• Bearing adapter range (standard) : 1.285-2.781"
• Cone range (standard) : 1.15 - 4.0"
• Maximum arbor weight (standard) : 350 lbs
• Shipping weight : 525 lbs
• Power requirements (standard) : 115 v, 1 ph, 60 htz Other electrics available upon request
• Drive motor: 1 hp, 1725 rpm
• Drum/rotor carriage motor : 2 gear motors
