10,000TL

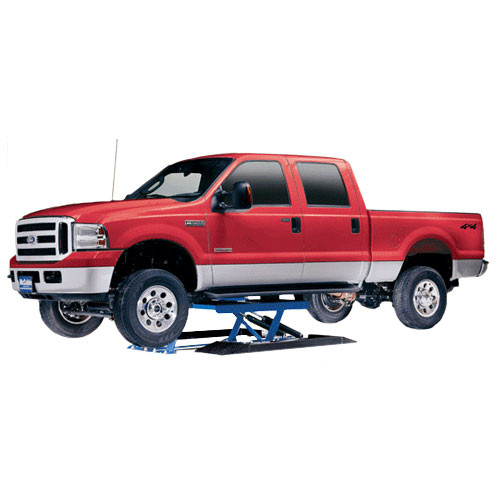

The 10,000TL Heavy Duty Pad Lift by Forward Lift offers 10,000-lbs. capacity and is ALI/ETL Certified.

Ask about our Free Freight Promo!
Local Sales Tax may apply.

More Capacity?  The 10,000TL, Forward Lift's Low Rise Tire Lift, is the answer.  The 10,000TL is designed with the volume tire shop in mind while also providing enough capacity to lift Super Duty Trucks.  The additional adpaters and capacity provided by the 10,000TL allow for easy lifting of Super Duty pick up trucks as well as passenger vehicles.  Setting the vehicle and reaching the raised height of 30" is quick and easy making the 10,000TL great for tire rotations, balancing and new tire mount and balance.   The Forward Lift 10000TL has a lowered height of 4" and a approach ramps making it easy to drive over.  To make it easier to lift vehicles without damage to underbody components the Forward Lift 7000TL comes with 4 - 1.5", 4 - 3" rubber blocks and 3 - 4 position adapters to provide additional lift height.   The 10,000TL includes anchor bolts, installation manual and is powder coated for a durable finish. The Forward Lift 10,000TL is backed by a 1 Year Factory Parts Warranty. Forward Lift is a Rotary Lift Consolidated company and is a subsidiary of the Fortune 500 Dover Corporation (NYSE:DOV) which is the Largest motorcycle/auto/truck lift manufacturer in the world. Customer service and support after the sale is the best in the business.

PRODUCT SPECS

• Capacity : 10000lbs.
• Rise High Step: 30 5/16"
• Rise Mid Step: 28 5/16"
• Rise Tall Step: 26 5/16"
• Rise Tall Pad: 24 3/4"
• Rise Short Pad: 23 1/4"
• Rise Flat: 21 3/4"
• Length Overall: 90 1/2"
• Width Overall: 78 1/2"
• Width Between Platforms: 22 3/4"
• Length of Platforms: 51 1/4"
• Length of Pad: 17"
• Outside Width of Platforms: 70 3/4"
• Horizontal Movement (during rise): 16"
• Collapsed Height: 4"
• Locking Leg Heights: 13 3/8" / 17 3/8" / 21 3/8"
• Motor: 115V / 1PH
• Time of Full Rise: 40 Seconds
• Hydraulic Oil - AW32 or AW46
