FML4

The Forward FML4 Mobile Lift set has a 60,000 lb. Capacity and is expandable to 90,000 lb. using 6 Posts.  The FML4 lift is certified to meet American National Standard ANSI/ALI ALCTV-1998 and ANSI/UL201-2006.

Local Sales Tax may apply.
Call Before Ordering.

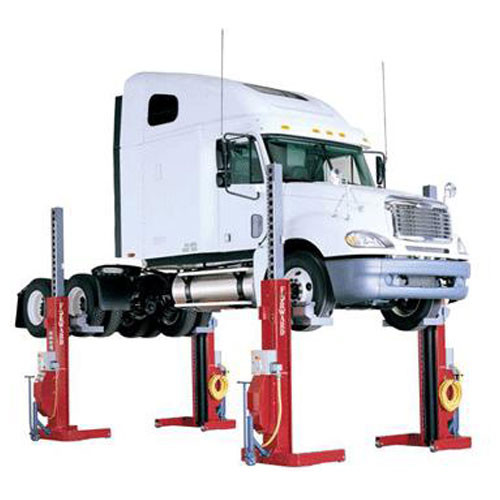

Forward Lift FML4 is a heavy duty mobile lift with 60,000 lbs. capacity specifically designed for lifting heavy equipment.  The FML4 is designed to lift from the wheels for full under vehicle service.  With optional heavy duty tripod stands most vehicles can be placed in a wheels free situation which allows wheel service, brake service and suspension component service.

The portability of the FML4 makes it perfect for the shop that does not always need a lift.  The FML4 can be stored in a small space out of the way.  When needed simply move it to the bay where it is needed, making every flat bay a lift bay on demand.

FEATURES

The lift column incorporates fully enclosed cylinders, a combination of rollers and glide blocks for maximum stability and spring activated mechanical locks which engage automatically every 4". Synchronized levelly which maintains level position of 1/8" to 1/2" between the posts. Each column contains a control panel allowing operation of the entire lift or that column.  The control panel contains power lights, cycle lights, emergency stop and up/down controls. Carriage forks are adjustable from 13" - 22.50" to accomodate passenger cars if needed.

OPTIONS

Forklift Adapters and Ramp Kit provide enough clearance to make raising a forklift for maintenenance and service possible. Part Number:  FM-FLA10 Tripod Stands come in 15,000 lbs. capacity with spring loaded wheels for portability.  Adjustment in 1" increments from 56" - 82 1/4" as well as a 4" fine tuning range exact pad placement.

PRODUCT SPECS

• Lifting Capacity: 60,000 lbs.
• Lifting Capacity per Column: 15,000 lbs.
• Rise: 67"
• Column Height : 88 1/2"
• Column Height Lift Raised: 150"
• Width per Column: 45 3/4"
• Length per Column: 43 5/16"
• Motor: 2 HP
• Voltage: 208-230 / 460 AC 3 Phase
• Speed of Rise: 130 Seconds
• Control Voltage: 24VDC
• Lifting Mechanism: Hydraulic Cylinder
