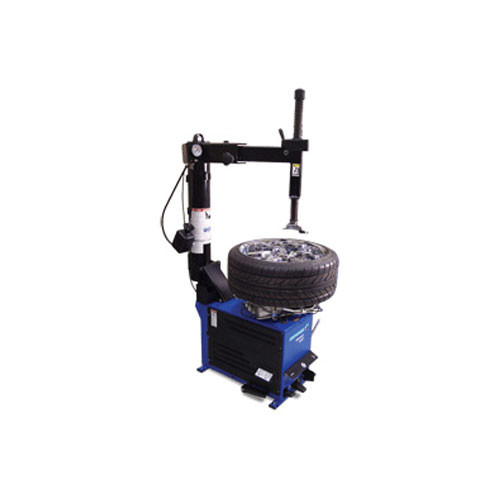

Hofmann 1620 Tire Changer

The Hofmann 1620 can do them all.
With up to 26" rims and tire diameters up to 50", there's no reason to turn away business.  The 1620 is a commercial grade tire changer.

Hofmann 1620 Tire Changer Handles up to 26” Rims!!!

TIRE CHANGER DESIGNED TO SERVICE ALL AUTOMOTIVE TIRES. THE HOFMANN 1620 Tire Changer HAS THE CAPACITY, VERSATILITY, AND DURABILITY REQUIRED TO MEET THE CHANGING DEMANDS IN TODAY'S TIRE SHOPS.

FEATURES

• Large wheel clamping range
  Designed for tires with treads up to 50" in outside diameter, and with up to 26" rim diameter, the 1620 can handle virtually any car or light truck.
• Dual rim clamping cylindersTight clamping using all four jaws, No damage from rim slippage in the jaws.
• Four Jaw clamping chuckThe self-centering clamping jaw set clamps rims up to 24" in diameter from the inside and up to 21" from the outside, 26" using optional jaw extensions.
• Powerful two position bead loosening
  6000 lbs. of power at the bead shovel and a range up to 18" wide. The giant two stage pneumatic cylinder provides very precise power toggled with the foot pedal as it is needed. Both the stiffest and the softest sidewalls are a snap. No damage to tires while loosening the beads.
• Powerful rim inflation systemFoot pedal operated. Powerful air blast. Each movable jaw is precisely set to the exact position under the rim to seal the tire bead.
• Built to last
  Heavy, solid ½" thick steel clamping table. Rugged steel reinforced chassis. All cylinders and valves can not rust. A compressed air lubricator and regulator are onboard to keep valves and cylinders maintenance free.
• Upgradeable
  Add the EASYMONT for an extra set of hands to aid the operator to mount/demount extra stiff, low-profile, high performance and run flat tires.
• Wheel protectors
  Guards included protecting even the most expensive alloy wheels and providing extra insurance; with ultimate wheel protection so that even the most expensive wheels can be changed without additional expense.

NOTE:  The Video shown with this page shows the 1625EM which includes the Easy Mont.  The video is to show the operation of a similar machine.

PRODUCT SPECS

• Bead Breaking Range: 2.0"-18"
• Bead Loosening Power: 6,000 LB.
• Max. Rim Width: to 15"
• Rim Clamping Diameter: 10.0" to 24.0"
• Rim Clamping Diameter (inner): 12.0" to 24.0"
• Rim Clamping Diameter (outer): 10.0" to 21.0"
• ATV Adaptor Option: 7 to 14"
• Motorcycle Adaptor Option: to 23"
• Automobile Adaptor Option: to 26"
• Max. Tire Diameter: 50.0"
• Electrical Requirements: 115v, 1 phase, 50/60Hz, 15 amps (other electrical avail. upon request)
• Drive Motor: 1 Hp (U.S. built)
• Air Supply Operating Range: 100 to 175 PSI
• Shipping Weight: 600 LB.
