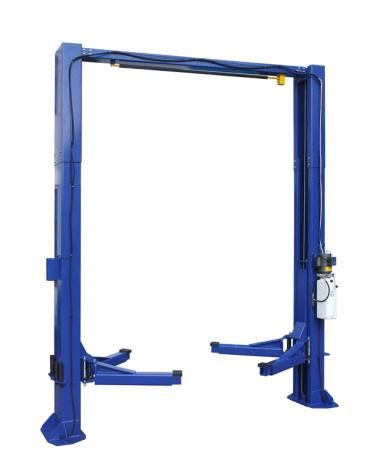

TX-12D

Weaver Lift TX-12D is the True Truck Lift.  Featuring 12,000-lbs of capacity along with a complete list of features including: Direct-Drive Cylinders, Single-Point Locks, Symmetric Lift Arms and a Tall overhead clearance.

Our Weaver Lift model TX-12D, is a 12,000 lb. capacity 2 Post symmetrical vehicle lift has been engineered and built to handle the heavier loads of large trucks and vans.


The TX-12D is a clear floor overhead model with symmetric arms and single point safety lock release that is perfect for heavier trucks and vans. The distance between the symmetrical columns is almost 122” with a drive thru clearance of over 109”. This extra width will allow the widest of vehicles to be lifted. The TX-12D's long symmetrical arms coupled with the additional height of the included truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards as well as many cars. Be sure you have at least a 14' ceiling height before ordering the 13' 8" tall TX-12D vehicle lift.

The TX-12D vehicle lift includes the truck adapter set, anchor bolts, installation manual and is powder coated for a durable finish.

The Weaver Lift TX-12D vehicle lift is backed by a 5 year parts warranty and a 1 year warranty for the hydraulic power unit/cylinder system.

FEATURES:

•     12000LB Capacity
•     Direct Drive Cylinders
•    Commercial Grade
•     Single Point Lock Release
•    Overhead Model
•     Powder Coat Finish for Durability
•    Truck Adapters Included
•     Symmetric Arm Design
•    Symmetric Post Design
•    Extra Tall (48") carriage for less wear on sliders Anchor Bolts Included
•    Automatic Arm Locks
•     Padded Automatic Overhead Shutoff

SPECIFICATIONS:

• Lifting Capacity: 12,000 LB.
• Overall Height: 165" (13' 9")
• Overall Floor Width: 151.50"
• Between Columns:  122"
• Drive Thru:  109"
• Minimum Pad Height:  6"
• Concrete Requirement: 6" Depth, 3000 PSI Rebar Reinforced
• Power Requirement: 220 volt, 1 phase, 30 amp
• Lifting Time: 60 Seconds
• Inside Column: 110"
• Maximum Lift Height: 79"
• Floor to Overhead Switch:  159"
• Shipping Weight : 2250 LB.
• Hydraulic Oil - AW32 or AW46
